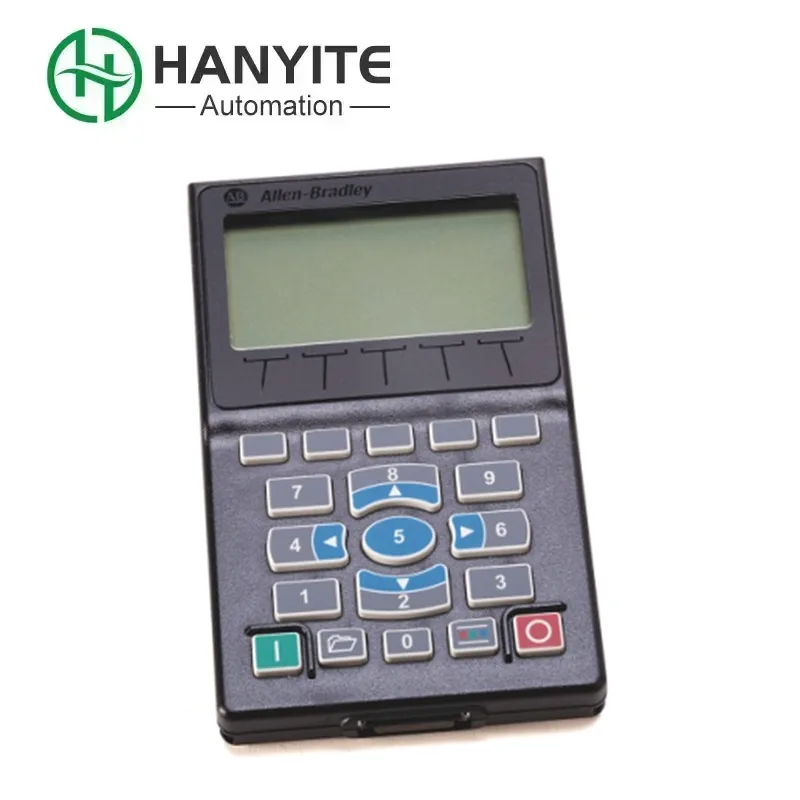

Allen Bradley 20-HIM-A6

Hanyite Automation supplies this interactive tool, Allen Bradley 20-HIM-A6. It has a black-and-white LCD display screen, which enables you to directly view various operating data of the frequency converter, such as the current frequency, output current, fault code, etc. At the same time, you can also modify parameters, start and stop the motor, or execute some preset commands through it. Intuitive control simplifies industrial operations and enhances efficiency.

문의 보내기

제품 설명

Among the PowerFlex 700 series,Allen Bradley 20-HIM-A6 is a NEMA type 1 human-machine interface module. It is specifically designed for use with a variety of Allen-Bradley drives and intelligent motor controllers, providing rapid parameter configuration, status monitoring and operation control. Hannite is a Chinese enterprise. With its high sales volume and wide customer reputation, it has won unanimous praise from customers. Its main functions include a full digital keyboard, dynamic soft keys, a flashing LCD display, multi-language support, and high-speed communication with the host device through the driver peripheral interface (DPI).

Core technical parameters and specifications

Model	Allen Bradley 20-HIM-A6
지원되는 장치	PowerFlex Series (753, 755, 700, 700H, 700S), Digital DC Drives, SMCFlex, SMC-50 Smart Motor Controllers
Interface Port	1 x DPI Connector Port
Protocol	DPI Protocol
Data Rate	선택 가능: 125Kbps 또는 500Kbps
Power Supply	12V DC (140mA) supplied by the host drive
작동 온도	0~50°C(32~122°F)
Vibration	2.5G (5Hz…2kHz)
Shock	30G(11ms 펄스)
인클로저 등급	NEMA 1(실내, 방진)
Height	116.0 mm (4.57 inches)
Design	Compact, suitable for control cabinet or equipment panel integration

Features

The module supports English, French, German, Spanish and Asian languages, making daily use more convenient and meeting global application requirements at the same time. AB 20-HIM-A6 is widely used in the fields of industrial automation and process control. It is capable of processing input and output signals to meet the control requirements of industries such as manufacturing, chemical engineering and power. To enhance user safety, the module is suitable for special power supply requirements such as high-voltage low-current, high-current, and 400Hz input AC/DC power supplies.

Application

The application scenarios of Allen Bradley 20-HIM-A6 are very extensive. In the manufacturing industry, it can be used to control and monitor the equipment on the automated production line. In the chemical industry, it can be used to monitor and control the chemical process. For example, in the petrochemical industry, it can monitor and control the key equipment of various chemical plants, such as valves, pumps and heaters. In the power industry, it can protect the stable operation of the power system, prevent power outages and add an extra layer of security.
