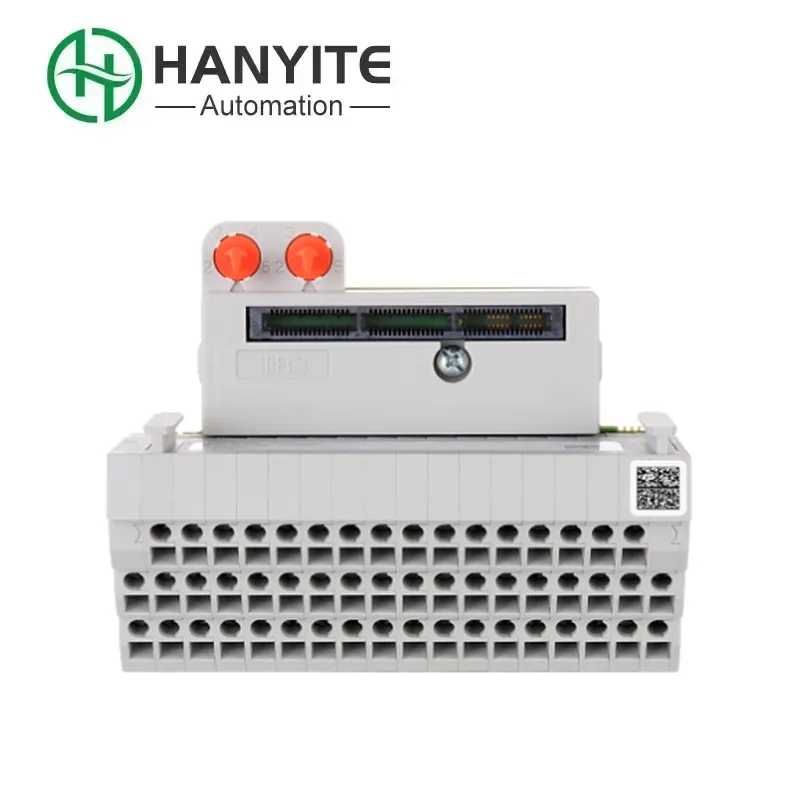

Allen Bradley 5094-RTB3

Allen Bradley 5094-RTB3 is a detachable terminal block, where RTB stands for abbreviation. It can serve as a relay for field devices and FLEX I/O modules. All field signal lines (such as sensor signals and power supplies to solenoid valves) are first connected to this terminal block, and then the terminal block is connected to the I/O module through a dedicated interface. Our company, Hanyite Automation Co., LTD., offers this product to provide those customers in need with a high-quality product.

문의 보내기

제품 설명

The Allen Bradley 5094-RTB3 series is a removable base for the FLEX 5000 series I/O modules. It is used in control systems such as CompactLogix and ControlLogix, providing a connection between field devices and controllers. Each connection screw must be able to provide sufficient contact pressure to ensure that the wires do not loosen. Meanwhile, its conductive parts must be made of materials with good electrical conductivity and strong oxidation resistance to ensure the stability of signal transmission and prevent signal attenuation or distortion due to excessive contact resistance. A well-performing terminal block can protect your system from random malfunctions caused by loose wiring.

Core Model and Functional Differences

Allen Bradley 5094-RTB3	Basic Removable Terminal Base	Used for connecting standard I/O modules.
Allen Bradley 5094-RTB3T / 5094-RTB3W	Distributed I/O Terminal Base	Supports EtherNet/IP network. CompactLogix 5380 및 ControlLogix 5580과 같은 컨트롤러와 호환됩니다. Some models feature a 1Gb embedded switch. Supports linear or device-level ring (DLR) topologies.
Allen Bradley 5094-RTB3IT / 5094-RTB3S	Advanced Terminal Base with Power Distribution	Provides field-side power distribution. Supplies separate system power to I/O modules. Enhanced electrical isolation. Ideal for modules like high-speed counters and analog I/O.
Extended Variants	(예: RTB3TS, RTB3WXT)	Suffix “S” indicates support for Safety I/O. Suffix “XT” indicates support for an extended temperature range.

애플리케이션

Allen Bradley 5094-RTB3 can be applied in any situation where FLEX I/O distributed I/O systems are used. For instance, in the remote control stations of large-scale automotive production lines, a large number of sensor and actuator signals need to be connected. In the logistics sorting system, the photoelectric switches and motor control signals distributed in various places need to be processed centrally. The remote I/O cabinet at the process control site needs to be connected to various transmitters and valve positioners. As long as you are using FLEX I/O, it is your first choice for wiring.

Delivery date

For basic accessories like Allen Bradley 5094-RTB3, it is inexpensive and is the key to achieving rapid maintenance. We are well aware of the significance. Through bulk purchasing and inventory management, we offer you a highly competitive delivery date. Under normal circumstances, we have sufficient on-hand inventory that can be dispatched along with your module order without any delay.
